"Realistic 2-Rail Track and Switches for all brands of S-trains"

Track rail is solid code .172 Nickel-Silver weathered.  This solid rail makes for quiet train running.  The rail

does not oxidize or rust and is excellent for use in a basement or other humid locations.  The track ties are
molded from UV resistant, high quality ABS plastic.  The track ties wood grain pattern, color, height, width,
length and spacing between the ties are modeled from the real main lines that adds to the prototypical look of
the track in a realistic fashion.  The weathered rail joiners have a detailed six bolt head design and come installed
from the factory on all track and switches for proper electrical conductivity. A snap lock system securely holds
    the track sections together to ensure exact alignment and good electrical contact. When the track sections are joined together the
    tie spacing remains uniform. This is an exclusive design found only with our track system. The flex track sections bend to an infinite
    variety of curves with no bend fixtures or special tools.  Switches are closed frog allowing for operation of all  S gauge wheel flanges.


    TRACK PRICES BELOW


Item#  Description                                                            Prices effective January 1, 2008             Each U.S.$
Status
2105
S-2.5S - Straight Sectional - 2 ½” long - 4/pkg TBA

2110 S-10S - Straight Sectional, 10” long, packaged 48 to a box.  Box $143.52
3.95
In Stock

2119


2127



2238


S-19 TRACK STARTER KIT, 19" radius, 38" centerline
Contents: 12 curve, 4 straight, one pair power feeds

S-27 TRACK STARTER KIT, 27" radius, 54" centerline

Contents: 12 curve, 4 straight, one pair power feeds

S-38C - Curved Sectional, 19” radius, packaged 48 to a box.  Box $143.52


59.95


69.95



3.95


In Stock



In Stock



In Stock
2254 S-54C - Curved Sectional, 27” radius, packaged 48 to a box.  Box $191.52
4.95
In Stock
2272 S-72C - Curved Sectional, 36” radius, packaged 48 to a box TBA

2290 S-90C - Curved Sectional, 45” radius, packaged 48 to a box
TBA

2159 S-60F - Flex Track - 60” long, 1 piece - ( $10.00 shipping charge for 1 piece)
19.95

2160 S-60F - Flex Track - 60” long, 8 pieces packaged to a box  159.60
In Stock
2161 S-60F - Flex Track - 60” long, 32 pieces packaged in a Master Carton
 638.40
In Stock

Circle Requirements for Curved Sectional Track

Item 2238 - It takes (12) Twelve S-38C Curves to make a Circle, 38" centerline
Item 2254 - It takes (12) Twelve S-54C Curves to make a Circle, 54" centerline
Item 2272 - It takes (16) Sixteen S-72C Curves to make a Circle, 72" centerline
Item 2290 - It takes (20) Twenty S-90C Curves to make a Circle, 90" centerline







2337 S-38LHR - Left Hand Remote Control Switch, 19" radius,  1 per box TBA

2338 S-38RHR - Right Hand Remote Control Switch, 19" radius, 1 per box TBA

2353 S-54LHR - Left Hand Remote Control Switch, 27" radius, 1 per box 64.95
In Stock



















2354

2351
























2352

The image “file:///C:/website/storeimages/S54Packaged101006_01.JPG” cannot be displayed, because it contains errors.

S-54RHR - Right Hand Remote Control Switch, 27" radius, 1 per box

S-54LHMT- Left Hand Manual Turnout, 27" radius, 1 per box

The image “file:///C:/website/storeimages/ManualRightTurnout.JPG” cannot be displayed, because it contains errors.

S-54RHMT - Right Hand Manual Turnout, 27" radius, 1 per box

Note: Customer to supply
mechanism to lock guide rails in straight or curved position.  You can use Caboose Industries Manual O Ground Throw for Above mounting or Cicutron Tortoise Electric Slow Motion Switch Machine for Undertable mounting  or any other make mechanism  to lock guide rails in straight or curved position.























64.95

49.95
























49.95






















In
Stock
In
Stock























In
Stock

2389 S-90LHR - Left Hand Remote Control Switch, 45" radius, 1 per box TBA

2390 S-90RHR - Right Hand Remote Control Switch, 45" radius, 1 per box  TBA

2419 S-19X - Crossover, 19 degrees, 10” long, 1 per box  TBA

2428 S-28X - Crossover, Special 28 degree for use with 4, S-54 switches, 10" long, 1 per box
TBA

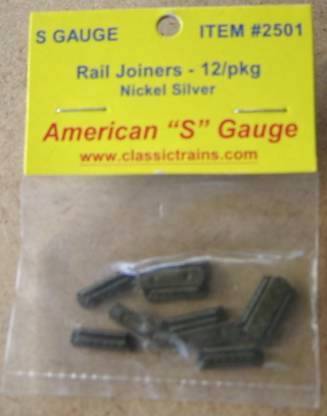

2501 S-Rail Joiners - nickel silver - 12/pkg 4.95
In Stock

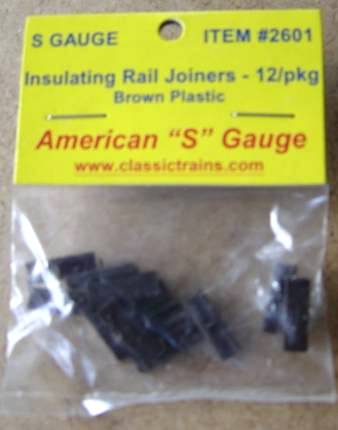

2601 S-Insulating Rail Joiners - brown plastic to match tie color - 12/pkg  3.95
In Stock

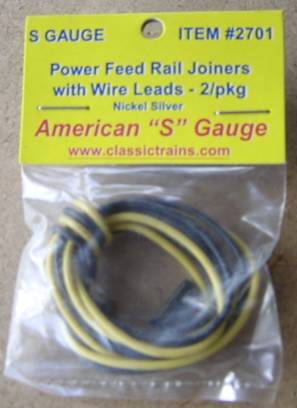

2701 S-Power Feed Rail Joiners - Black/Yellow  leads for transformer power hook-up
 3.95
In Stock

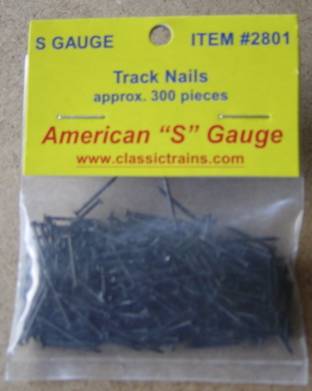

2801 S-Track Nails - approx. 300 pieces  3.95
In Stock

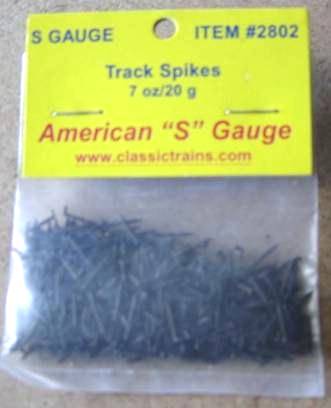

2802 S-Track Spikes - 7 oz/20g  3.95
In Stock

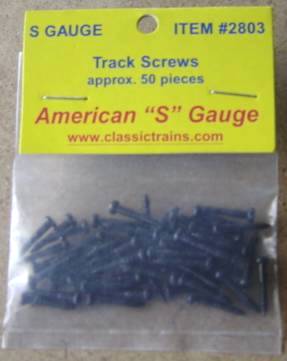

2803 S-Track Screws - approx. 50 pieces  3.95
In Stock





The image “file:///C:/website/storeimages/ASG2501.JPG” cannot be displayed, because it contains errors.The image “file:///C:/website/storeimages/ASG2601.JPG” cannot be displayed, because it contains errors.The image “file:///C:/website/storeimages/ASG2701.JPG” cannot be displayed, because it contains errors.

The image “file:///C:/website/storeimages/ASG2801.JPG” cannot be displayed, because it contains errors.The image “file:///C:/website/storeimages/ASG2802.JPG” cannot be displayed, because it contains errors.The image “file:///C:/website/storeimages/ASG2803.JPG” cannot be displayed, because it contains errors.
     Track nails are black, .090 head,           Track Spikes are black, .035 thick,      Track Srews are black, round head,
  .035 thick, 1/2" long,
use no.64 drill                             5/16" long                            straight slot, .082 thick, 1/2" long
For securing track to roadbed or wood         For securing rail to wooden ties                 (use 1/16" drill bit, .062)                                                                                                                                                          For securing track to wood or roadbed


NOTE:
When using track nails, spikes or screws, the starter holes on the bottom side of the ties need to be pre-drilled prior
            to fastening down the track ties.

The image “file:///C:/website/storeimages/StarterHole.JPG” cannot be displayed, because it contains errors.


Optional Accessories
2111 S-RU - Remote Uncoupler (attaches to any straight section) TBA
2112 S-TB - Track Bumper (track not included) TBA
2113 S-RR - ReRailer  TBA
2901 S-SM - Switch Motor (remote control)  TBA
2921 S-SCB - Switch Control Box (green & red push-button)  TBA


Track Features:

  1)  American "S" Gauge modular track system is designed to operate all
       S-gauge wheel flanges in S-gauge railroading.
  2)  All rail comes pre-weathered and is solid code .172 Nickel/Silver.
  3)  The rail material is 65% Copper with 12% Nickel for optimum electrical
       conductivity between rail and wheel.
  4) The rail does not oxidize or rust and is excellent for use in a basement
       or other humid locations.
  5) This solid rail makes for quiet train running.
  6) Ties are molded from UV resistant, high quality ABS plastic.
  7) The track tie's wood grain pattern, color, height, width, length and spacing
       between the ties are modeled from the real main lines that adds to the
       prototypical look of the track in a realistic fashion.
  8) The weathered rail joiners have a detailed six-bolt head design and come
       installed from the factory on all track and switches for proper electrical
       conductivity.
  9)  A snap lock system securely holds the track sections together to ensure

       exact alignment and good electrical contact.  When the track sections are
       joined together the tie spacing remains uniform. This is an exclusive design
       found only with our modular track system.
10) The Flex Track is made in full 60-inch lengths ( 5 feet ) that bends with ease
       to an infinite variety of curves with no templates, bend fixtures or special tools.
11) The switches are of a closed frog design allowing for operation of all S-gauge
       wheel flanges, Tinplate, Hi-Rail and Scale.
12) Fully AF Compatible.


      We, and our customers believe this track to be the best and the most realistic.

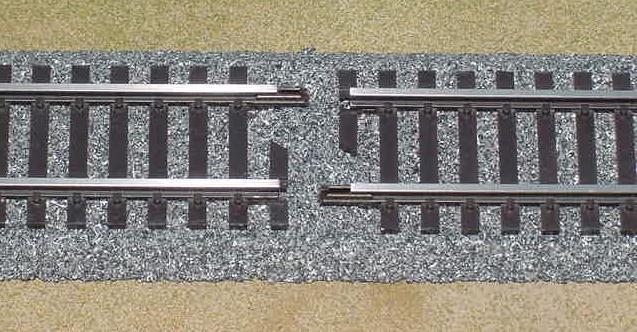

Exclusive Snap Lock System

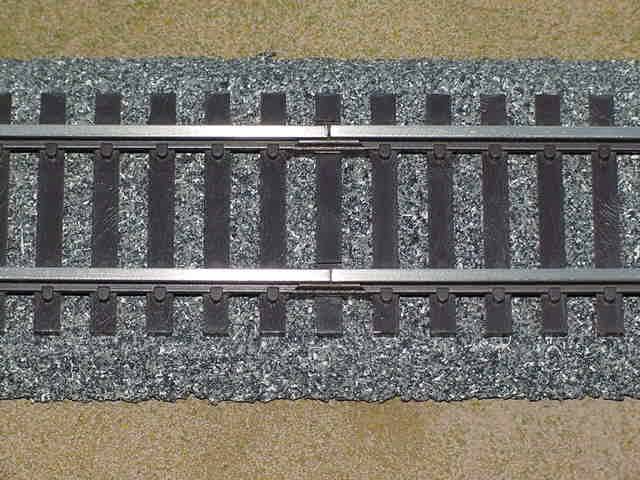

Tie Spacing Remaining Uniform

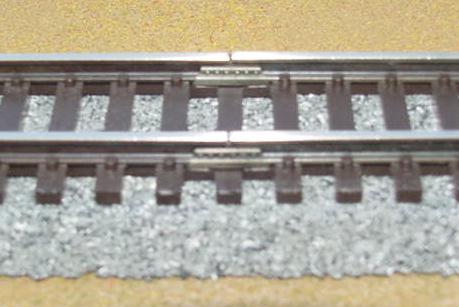

Rail Joiners With Detailed Six Bolt-Head Design

The S-54 Remote Control Switch comes
fully assembled, ready for easy installation.
C
omplete with Switch Motor, Control Box,
Wire and Instructions.

The image “file:///C:/website/storeimages/ProdS54RHR.JPG” cannot be displayed, because it contains errors.
Features:
  • Closed Frog Design
  • Solid code .172 Nickel Silver Weathered Rail
  • Compatible with all brands of S-Trains

Input Power:

Input power must be 14-18 volts AC with a minmum of 40 watts.

Switch Motor:
Switch motor is a low-profile design, twin electric coils
with high quality components for trouble free operation.

Manual Throw:
Can manually throw switch.

Switch Motor Mounting:
Switch motor can be easily removed with six screws.
Can mount other makes for under the table installation.


Target Stand Switch Position  Indicator:
Target Stand Switch Position Indicator on top is lighted
all four sides with a Bi-polar LED, showing Green in
straight position, or Red for curved position.


This switch document shows data which is the property of Classic Trains and is not to be copied, reproduced, published, submitted to others, or used for manufacture without the specific written consent of Classic Trains. All proprietary rights and the rights to its request are retained by Classic Trains.
